What This Sensor Does

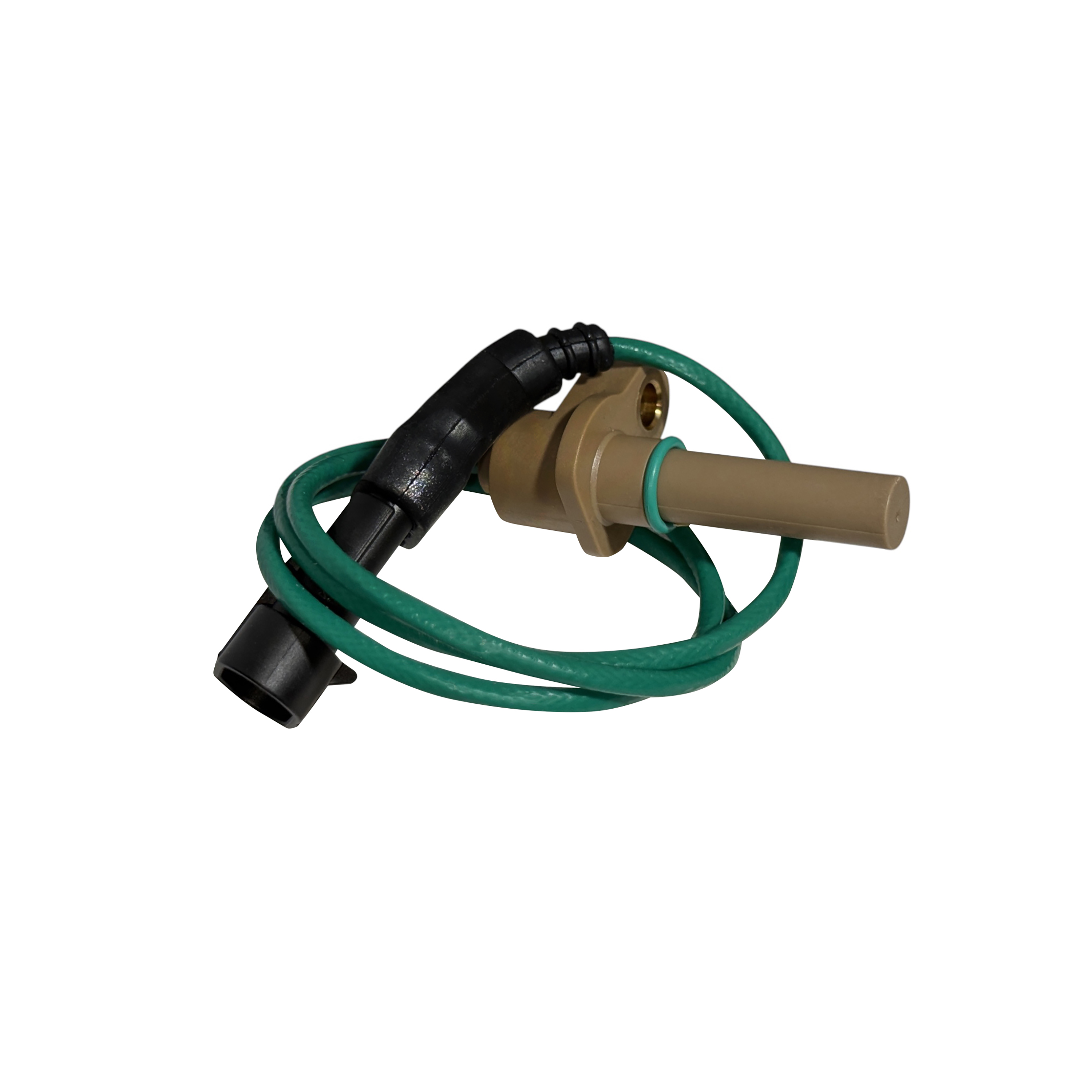

The 4032068 is a magnetic pickup mounted at the turbo, watching the shaft as it spins. It sends a frequency signal back to the ECM, and the ECM uses that signal to manage the variable-geometry actuator and keep the turbo inside its speed limits. No signal, no reliable overspeed protection.
This is a Holset HE400VG and HE500VG application on Cummins ISX, ISM and QSM engines. Those turbos show up in Class-8 trucks from Freightliner, Kenworth, Peterbilt, International, Western Star and Volvo. The sensor is not a generic speed pickup — the body, thread and signal output are specific to this turbo family.
Connection is a rectangular blade connector that mates to the factory turbo harness, so there is no splicing or adapter work on a correct application. Mounting hardware is included with the aftermarket unit. It is a direct replacement for the 4032068 unit, not a modified or universal sensor.
Why These Numbers Cross
4032068 is the headline Cummins number, but the same sensor has carried several service numbers over its production life. 4027517, 4089377, 3596936, 3598841 and 4036059 all appear on Holset VGT applications and supersede or interchange with each other. Supersession happens when the manufacturer revises packaging, kit contents, or the hardware bagged with the sensor rather than the sensing element itself.
PAI Industries lists 050618 for the same application. That is an aftermarket catalog number for identification, not an OEM number. If your parts book or a previous invoice shows 050618, you are looking at the same magnetic pickup described here.
What makes them cross is the physical interface and the electrical output: same pickup body, same rectangular blade connector, same signal the ECM expects to see from the turbo shaft. Numbers listed here are for cross-reference only. Confirm against the number stamped on the old sensor or your engine serial number before you order.
Failure Symptoms And Checks
Typical complaints are a turbo speed fault code, low power or derate, and inconsistent boost. The sensor sits in a hot, vibrating location, so the usual killers are heat-hardened wire insulation, a cracked connector body, and corrosion in the blade terminals. Chafed harness against the turbo housing is common and mimics a bad sensor.
Before ordering, pull the connector and inspect both halves. Check for green terminals, pushed-back pins, and melted insulation where the lead runs near the exhaust. Wiggle-test the harness with the engine running and watch whether the fault drops in and out. If the harness is the problem, a new sensor will not clear the code.
Note the number stamped on the old sensor when you have it out, and have the engine serial number ready. Cross-reference gets you close, but final fitment is confirmed by that serial number or the number on the part you removed.
4032068 Cross-Reference & Interchange Numbers
These manufacturer and aftermarket numbers commonly cross-reference to 4032068. Use them to identify the part — then confirm the exact fit by VIN or the number stamped on your old unit before you order. An interchange is a starting point, not a fitment guarantee.
| Brand / Line | Cross-Reference Numbers |
|---|---|
| Cummins/Holset | 4027517, 4089377, 3596936, 3598841, 4036059 |
| PAI Industries | 050618 |
Frequently asked questions
Will 4027517 or 4089377 work in place of 4032068?
Those Cummins numbers are listed as interchanges for the same Holset VGT turbo speed sensor, so a part carrying any of them is generally the same pickup. Supersessions in this family usually reflect packaging or bagged hardware changes rather than a different sensing element. Verify against the number on your old sensor and your engine serial number before ordering.
Do I have to replace the turbo if this sensor fails?
Not usually. The speed sensor is a separate magnetic pickup that mounts to the turbo, so it can be replaced on its own if the turbo itself is healthy. Check the connector and harness first — heat damage and corroded blade terminals cause the same fault codes. If the turbo has bearing damage or shaft play, that is a separate diagnosis.
Is this a plug-and-play install or does it need programming?
The rectangular blade connector matches the factory turbo harness, so it plugs in without splicing on a correct application. Mounting hardware is included. Clear the stored fault codes after installation and verify the turbo speed signal is live on your scan tool before returning the truck to service.
