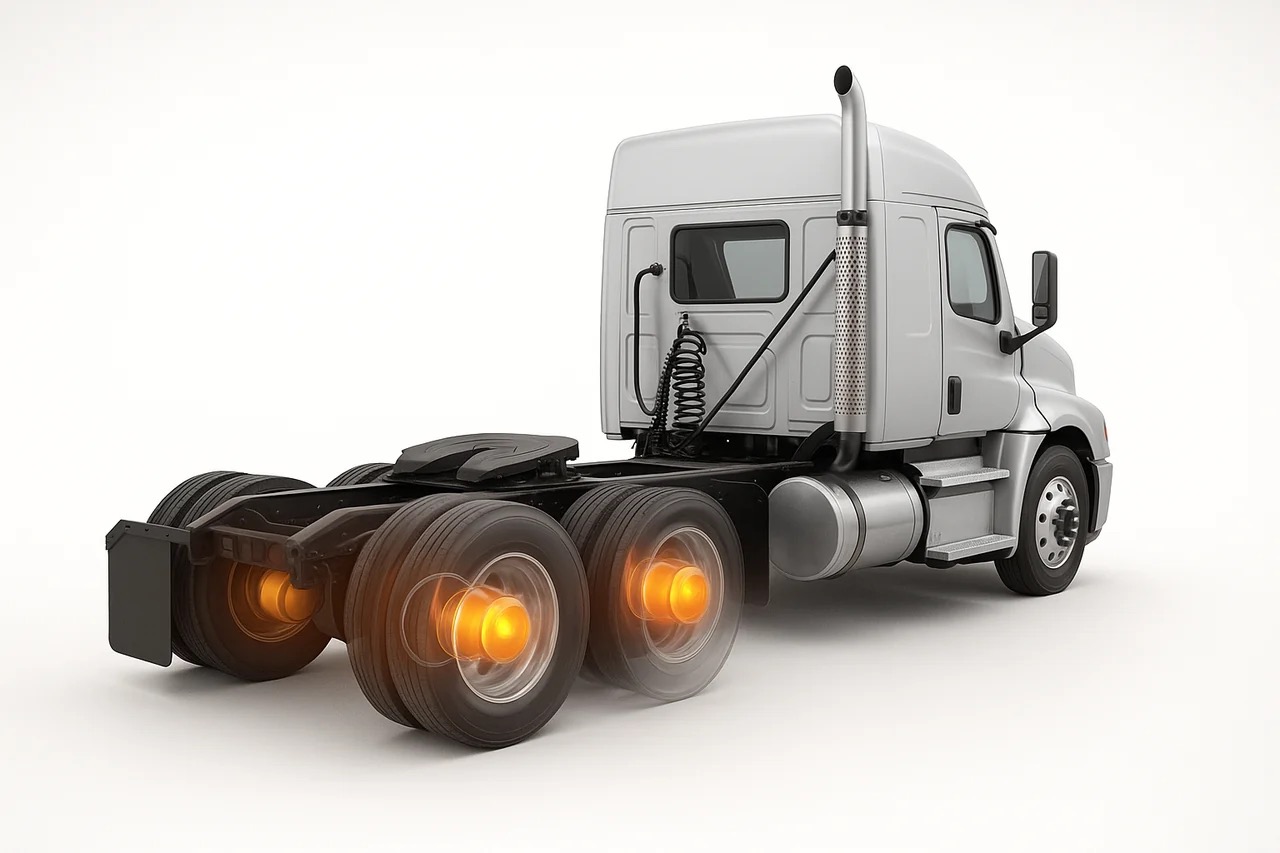

Long Stroke vs Short Stroke vs Double Diaphragm: Which Air Brake Chamber Your Truck Needs

Start with the number on the old chamber

Before you order anything, read the can you're pulling off. The type and stroke are stamped or cast right on the body or the ID tag — a "30/30" is a 30-square-inch service side and a 30-square-inch spring side. Get that number and half the decision is already made.

Lost the tag to rust and road salt? Send us the VIN and we'll pull the spec that shipped on the truck. A brake chamber is not the place to eyeball it.

Long stroke: for extended-travel slack adjusters

Long-stroke chambers give the pushrod more travel before it runs out of adjustment. Most modern highway tractors — Cascadias, T680s, 579s — run them on the drive axle so the brakes stay in spec longer between PMs.

If your old can is marked long stroke, that's what goes back on. Drop a short-stroke in its place and you'll be chasing adjustment inside a month, and adjustment is exactly what a DOT inspector puts a hand on.

Short stroke: the older standard, still everywhere

Short stroke is the older standard, still on plenty of trailers and older trucks. Less travel, same job. It isn't worse — it's matched to a different slack adjuster and mounting. The mistake is mixing the two: a short-stroke where a long-stroke belongs shorts you on pushrod travel, and that's a violation waiting to happen.

Double diaphragm: the 30/30 spring brake most drive axles run

"Double diaphragm" is the piggyback spring-brake design — a service diaphragm to stop the truck and a big internal spring to park it and hold you on a grade if the air ever bleeds off. Drive and trailer axles run these.

One caution that isn't optional: never cut one open. That spring stores enough energy to kill you. Replace the complete assembly, every time. Caging the spring is a controlled shop procedure, not a driveway job.

Don't guess on a brake part

A chamber is a cheap part attached to whether the truck stops. Long stroke, short stroke and double diaphragm all mount the same and cross to the same Bendix, Haldex and Meritor numbers, so the only thing that actually matters is getting the stroke right. We confirm it by the number on your old can or your VIN before it ships.

Replace in pairs, keep one on the shelf

Diaphragms on the same axle have lived the same life. If one let go from age rather than damage, its partner is next — do both sides at once and the braking stays balanced. Fleets keep a couple of each on the shelf so a torn diaphragm is a twenty-minute fix, not a parked truck waiting on freight.

PartStop stocks all three as premium-quality aftermarket direct replacements, cross-referenced to the numbers you're already reading off the old part, backed by a 6+ month warranty and shipped same-day out of Tacoma.
