Clamp-Type vs Bolt-Together Air Brake Chambers: What's the Difference?

Two builds, same job

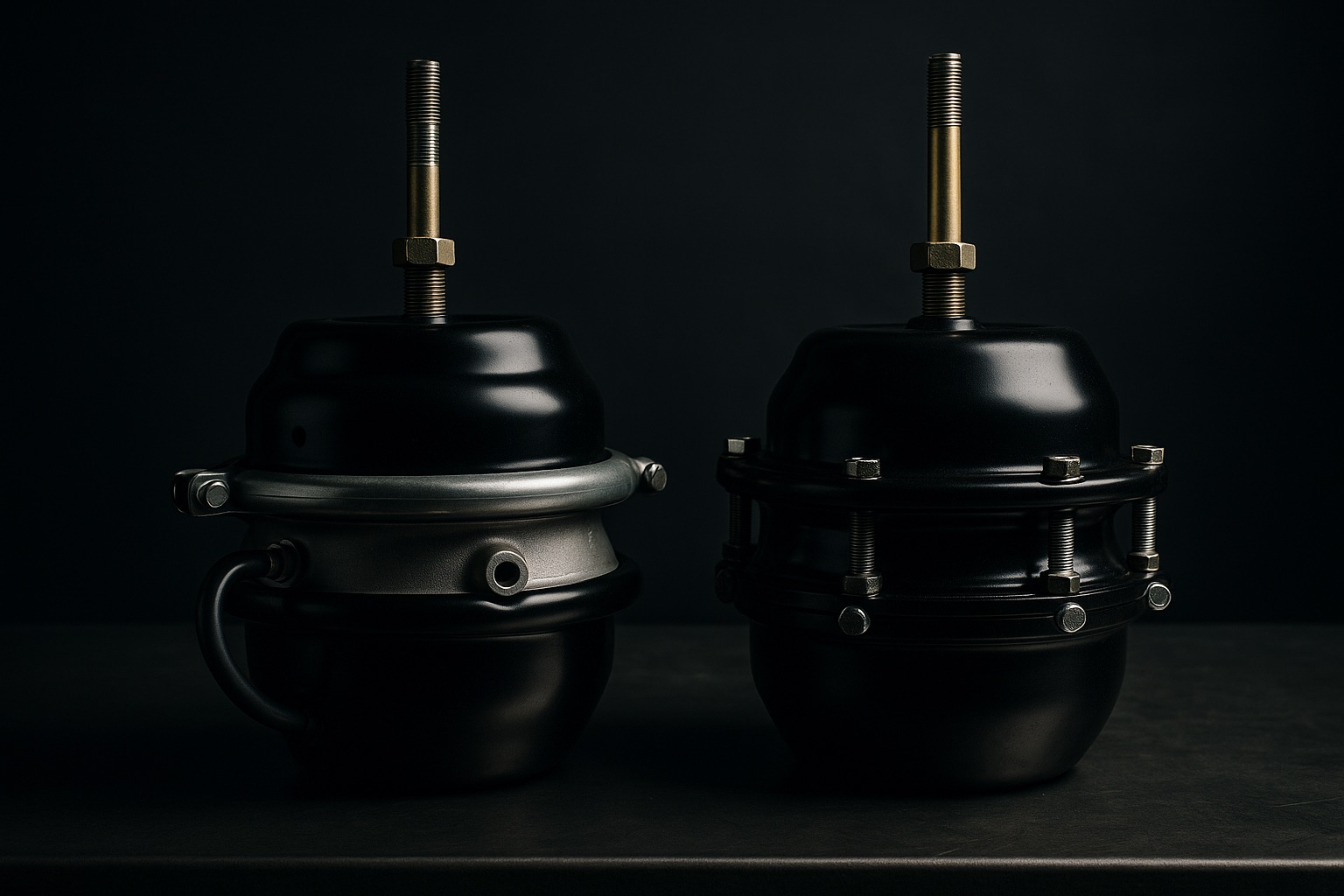

The chamber's job doesn't change, but the way the housing is assembled does. A clamp-type chamber holds the two halves together with a steel clamp band (the ring you see around the middle). A bolt-together chamber joins them with bolts around the perimeter. Both are standard, both do the same braking — the difference is in service and in what bolts up to your bracket.

The clamp-type: the common one

Most modern spring brakes on trucks and trailers are clamp-ring style. The clamp band makes the non-pressure (spring) side a sealed, non-serviceable unit — which is exactly what you want on a spring brake you're never supposed to open anyway. When it fails, you replace the assembly. Clean and simple.

Bolt-together: know before you order

Bolt-together chambers show up on certain applications and older equipment. The practical point for ordering is that a clamp-type and a bolt-together aren't visually interchangeable at the bracket, and the clamp band vs bolt flange changes the profile. So this is one more thing to match to what came off — not because one is better, but because they mount and seal differently.

What actually matters when you buy

• Match the type and stroke first — that's the braking spec.
• Match the build (clamp vs bolt-together) so it seats on your bracket and the band/flange clears.
• Confirm the mounting stud pattern and pushrod length are the same.
• For any spring brake, remember it's a sealed replace-only unit regardless of how the halves are joined.

Order off the old can

The fastest way past all of this is to read the chamber you're replacing and match it. PartStop stocks premium-quality aftermarket direct-replacement chambers cross-referenced to Bendix, Haldex and Meritor — tell us the number and the build off the old unit, or send the VIN. 6+ month warranty, same-day from Tacoma, singles and 2/4/10-packs.
