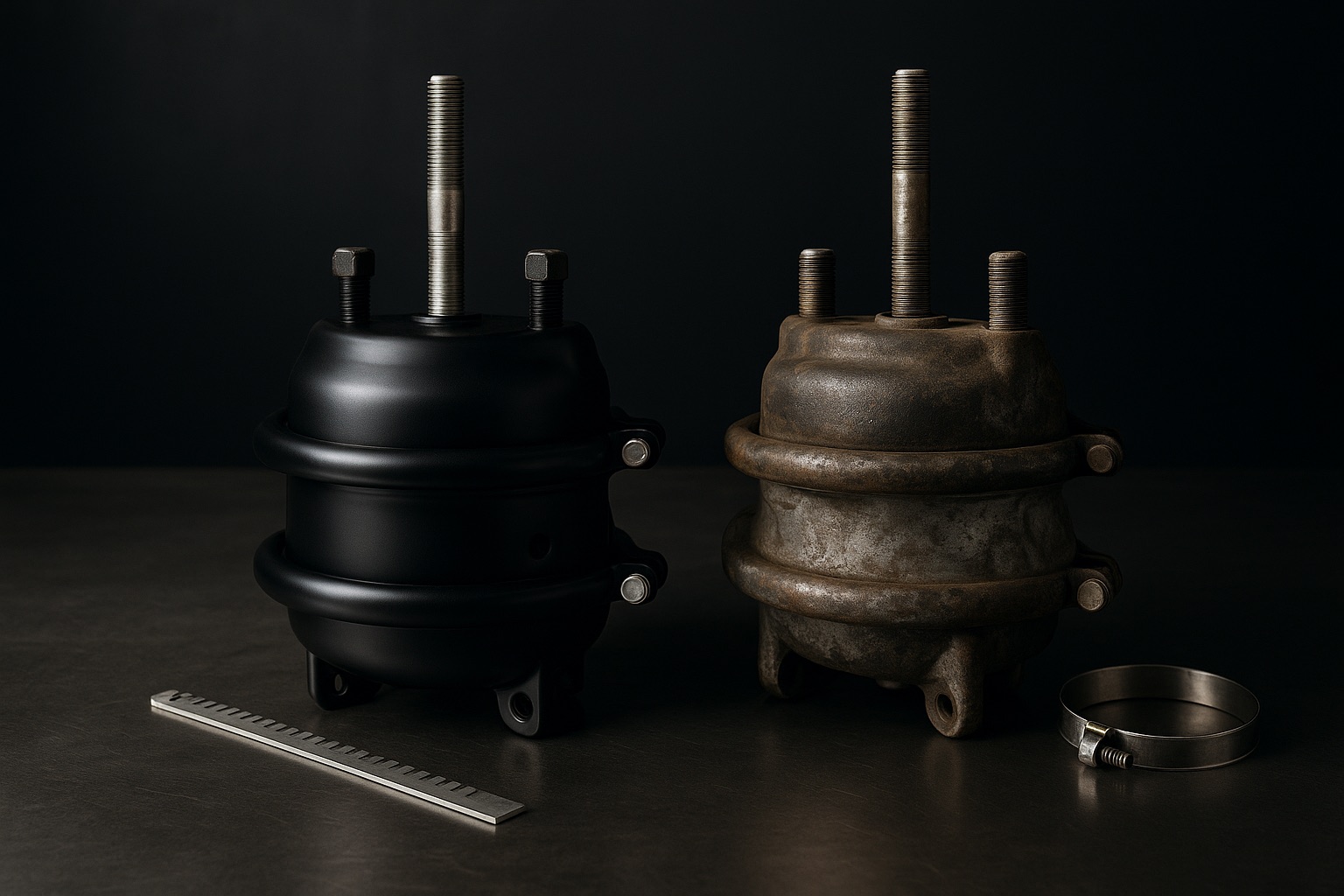

How to Choose the Right Air Brake Chamber: A Buyer's Checklist

Buy off the old part, not off a catalog

The single best way to order the right chamber is to read the one you're taking off. Type, stroke and mounting are stamped or cast right on the can. Everything below is really just a checklist for reading that number correctly — because a chamber that's one step off in stroke bolts on fine and then never lets the brakes come into adjustment.

If the tag is gone to rust, don't guess. Send us the VIN and the number off the slack adjuster and we'll pull the spec that shipped on the truck.

1. Type — the diaphragm size

The type number is the effective diaphragm area in square inches — a Type 30 has a 30 in² diaphragm, a Type 24 has 24. Bigger area, more clamping force at the same air pressure. Most road-tractor drive axles run Type 30; steer axles usually run a smaller service chamber. Match the type to what came off; going bigger or smaller changes the brake balance the truck was engineered around.

2. Stroke — long vs short, the one that trips everyone

Long stroke gives the pushrod more travel before it's out of adjustment; short (standard) stroke is the older spec with less. They look almost identical on the shelf. Put a short-stroke where a long-stroke belongs and you've shorted the brake on travel — an out-of-adjustment violation waiting for an inspector. Most modern highway trucks run long stroke on the drives for exactly this reason. Match what came off, every time.

3. Service chamber vs spring brake

A single service chamber only applies the brake when you press the pedal — that's your steer axle. A spring brake (the "double" or piggyback, the 30/30) adds the big internal spring that parks the truck and holds it if the air ever bleeds off — that's your drives and your trailer. These are not the same part and they don't substitute. If there's a second, larger housing bolted behind the first, you need the spring brake.

4. Mounting and pushrod

• Stud pattern: same bolt spacing so it drops onto the existing bracket.
• Pushrod length and clevis: so the geometry to the slack adjuster is unchanged.
• Clamp-ring vs bolt-together: match the build so the clamp band and boot fit.
• Air port location/thread: so your existing lines reach without adapters.

5. Quality — where "cheap" actually costs you

A chamber is a commodity, but the diaphragm rubber and the housing coating are where the cheap ones cut. A thin diaphragm cracks early; a bare housing rusts through a winter. "Aftermarket" is not the risk — a premium-quality aftermarket direct replacement is built to the same DOT 121 spec and bolts to the same holes. What you skip is the dealer markup on a part that stops the truck, not the quality.

Buy it once, buy it right

Match those five and the new chamber drops in on the same bolts and comes into adjustment on the first stroke. PartStop stocks long stroke, short stroke and double-diaphragm chambers as premium-quality aftermarket direct replacements, cross-referenced to Bendix, Haldex and Meritor, with a 6+ month warranty and same-day shipping from Tacoma. Running a fleet? The 2-, 4- and 10-packs drop the per-unit price and keep the parts room stocked. Tell us the number off the old can and we'll confirm the fit before it ships.
