Air Brake Chamber Leaking Air: How to Find It, and What It Means

The two leaks a chamber makes

A leaking chamber usually shows up one of two ways. A service-side leak hisses when you press the brake and stops when you let off — that's the service diaphragm. A spring-side leak bleeds air with the brakes released, often draining the tanks overnight or making the compressor cycle constantly. Knowing which one you have tells you a lot before you even crawl under.

Either way, the root cause is almost always the same: a diaphragm that's cracked at a fold from age, or a housing that's corroded and no longer sealing.

Find it with soapy water

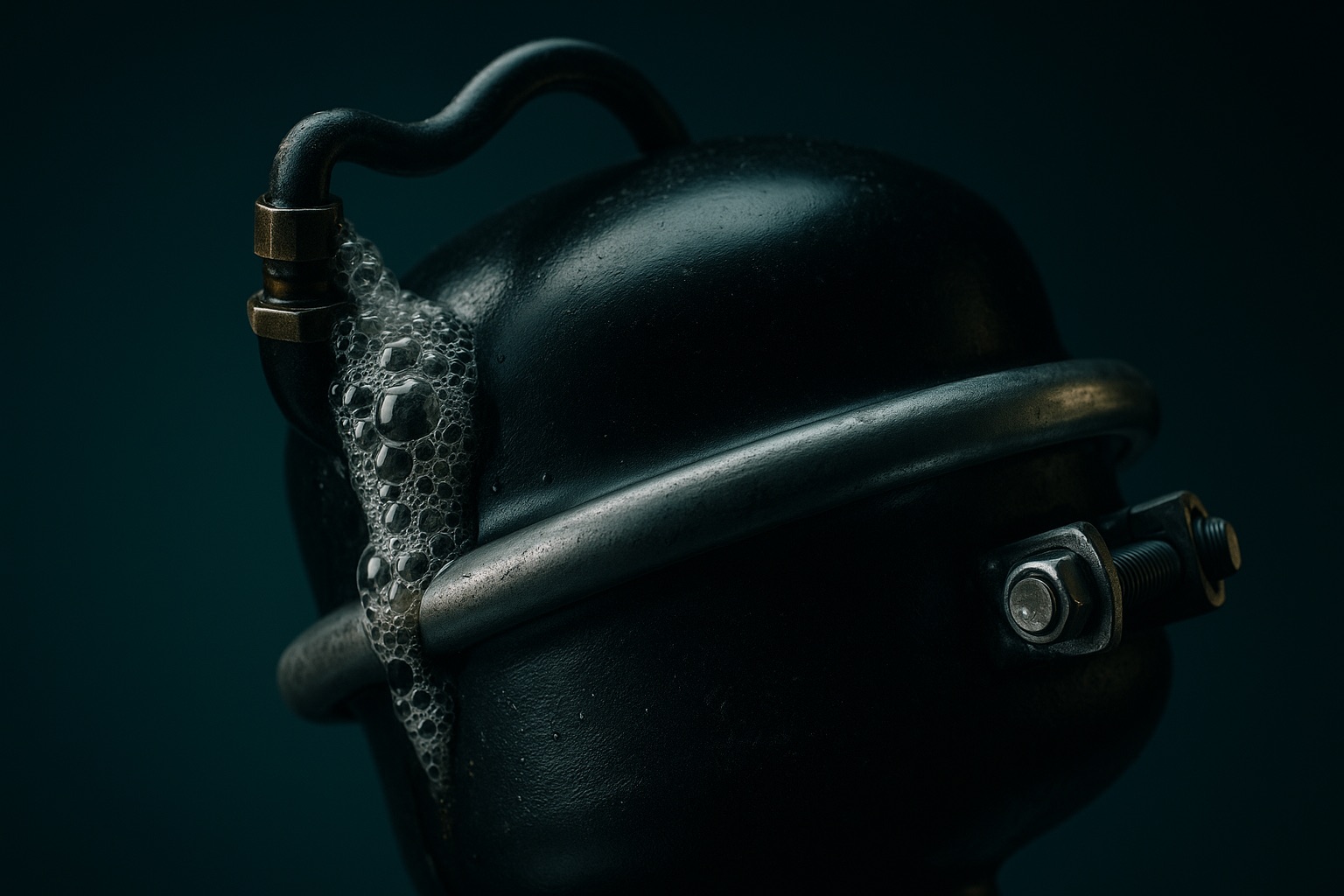

• Build the system to full pressure and mix a spray bottle of soapy water.
• Spray the chamber body, the clamp band, the air fittings, and the breather/weep hole.
• Watch for growing bubbles — that's your leak. Do it with the brakes released, then again with a helper holding the pedal, to catch both sides.
• A steady stream of bubbles from the non-pressure breather hole points at a torn diaphragm inside.

Is it the chamber or the fitting?

Not every hiss is a dead chamber. A leak right at an air fitting can just be a loose connection or bad sealant — tighten it, re-seal it, and re-test before you condemn the part. But a leak from the chamber body, the clamp band, or the breather hole is the diaphragm or the housing, and that's a replacement, not a repair.

Why you don't let it ride

A small chamber leak isn't just an annoyance. It makes the compressor work overtime, drops your reserve air, and on the spring side it can bleed enough overnight that the parking brakes drag or the truck won't build air to release in the morning. And a diaphragm that's cracked will only tear further. It's a cheap part failing slowly toward an expensive moment.

Replace it right

A leaking spring chamber gets replaced as a complete assembly — you don't open one. Match the type and stroke on the old can, do both sides of the axle, and check the stroke adjustment after. PartStop stocks premium-quality aftermarket direct-replacement chambers cross-referenced to Bendix, Haldex and Meritor, 6+ month warranty, same-day from Tacoma, in singles and 2/4/10-packs.
