How to Replace an Air Brake Chamber: Step-by-Step (and When to Call a Pro)

Before you touch a thing: this job has a safety line

A service chamber (steer axle, single housing) is a reasonable job for a competent DIYer with air tools and jack stands. A spring brake — the double 30/30 on your drives and trailer — has a coil spring inside that can kill you if it lets go while the housing is open. That one gets caged with the proper tool before anything comes apart, and if you're not set up for it, it goes to a shop. No pride in this; people lose fingers and eyes to spring brakes every year.

This is a general guide, not a substitute for the truck's service manual and DOT 121 procedure. If any of it reads as unfamiliar, that's your signal to hand it to a diesel shop.

What you'll want on the bench

• The correct replacement chamber — type and stroke matched to the old one.
• Wheel chocks, jack and jack stands rated for the axle.
• A spring-brake caging tool (for any spring/double chamber) and the release tool bolt.
• Line wrenches, a torque wrench, and PTFE/thread sealant for the air fittings.
• A new clevis or clevis pins if the old ones are worn, and a dust boot.
• A brake stroke gauge or ruler to set and check adjustment after.

The steps, in order

• Chock the wheels and drain the air pressure from the system. Confirm zero before you start.
• On a spring/double chamber, cage the spring FIRST with the caging tool until it's fully backed off and locked — this neutralizes the spring's energy.
• Mark and disconnect the air lines. Label them; crossing service and emergency lines on reassembly is a classic mistake.
• Back off the slack adjuster, pull the clevis pin, and disconnect the pushrod.
• Unbolt the chamber from the bracket and remove it. Clean the mounting surface.

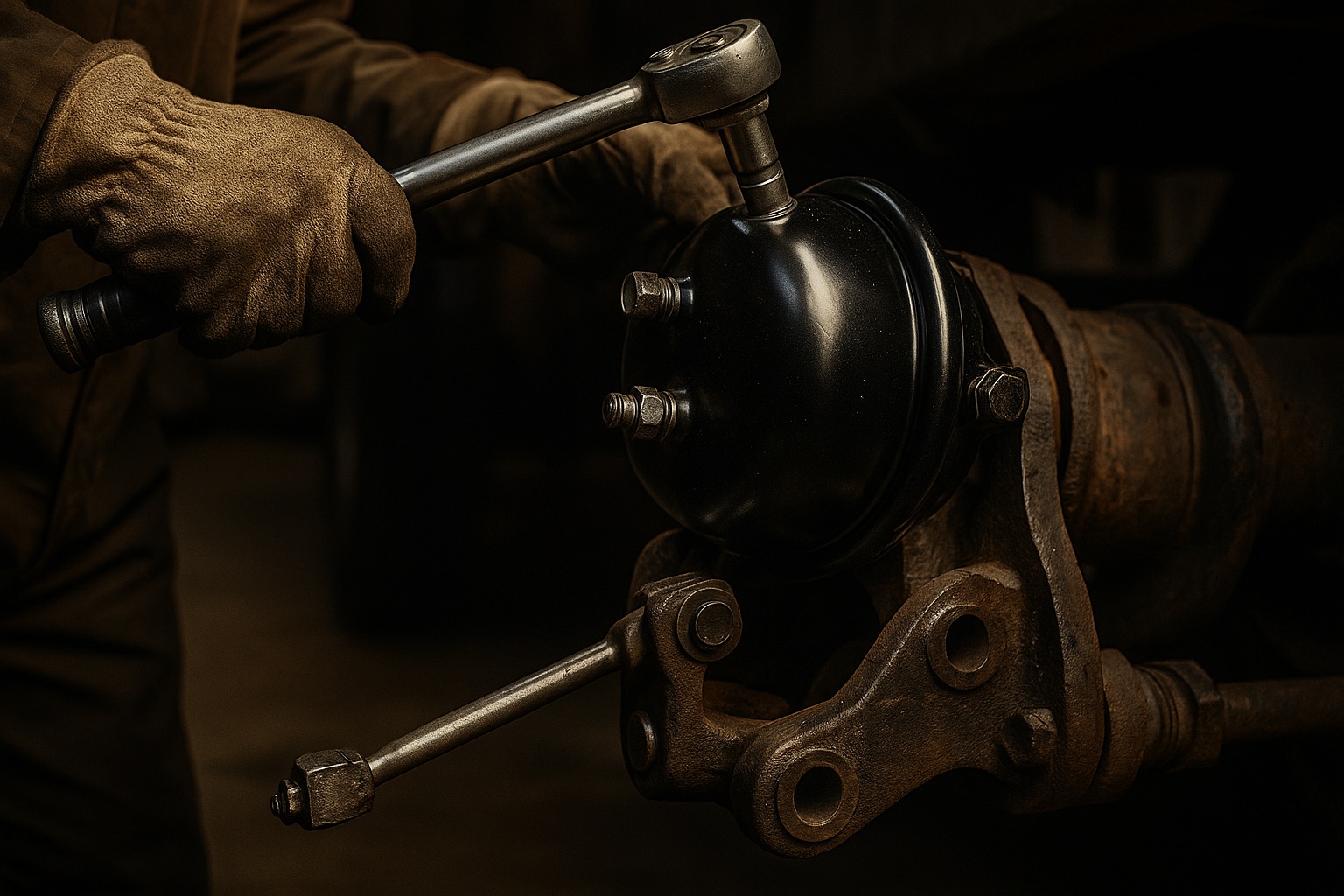

• Mount the new chamber, torque the mounting nuts to spec, and reconnect the pushrod — set the clevis so the pushrod angle and length match the old geometry.
• Reconnect the air lines to the correct ports with sealant, un-cage the spring, and charge the system.
• Check for leaks with soapy water at every fitting and the clamp band.

Set the adjustment — this is the whole point

A chamber that's bolted on but out of adjustment is no better than the one you pulled. With the system charged, measure the pushrod stroke with the brakes applied and confirm it's inside the limit for that chamber size. An automatic slack adjuster should bring it in; if it doesn't, the slack adjuster or the geometry needs a look. This is exactly the number a roadside inspection measures, so don't leave it to chance.

Do the pair, then road-test

If you're in there for one side, do the other — same axle, same miles, and balanced brakes are the point. When both are on and adjusted, do a low-speed brake test in a safe spot before the truck sees a load or a hill. You're feeling for even pull, a firm pedal, full release, and no drag or pull to one side.

The part that makes the job easy

Half of a clean chamber swap is having the right part in hand before you jack the truck up. PartStop stocks long stroke, short stroke and double-diaphragm chambers as premium-quality aftermarket direct replacements — cross-referenced to Bendix, Haldex and Meritor, matched to the number on your old can or your VIN, with a 6+ month warranty and same-day shipping from Tacoma. Fleets buy the 2-, 4- and 10-packs so the next swap is already on the shelf.
