How to Safely Cage a Spring Brake Chamber (Without Getting Hurt)

First, what 'caging' is and why you'd do it

A spring brake holds a huge coil spring compressed with air. 'Caging' means mechanically backing that spring off with a tool — the release bolt — so it's no longer pushing on the brake. You cage a spring brake to move a truck that won't release on air, or to safely remove the chamber for replacement. It's a routine, legitimate job.

It's also the one where people get seriously hurt, because that spring stores enough energy to fire a steel cap across a shop. Respect it and it's straightforward. Rush it and it isn't.

The hard rules — read these first

• NEVER cut, grind, or pry a spring brake chamber open. The spring must be caged first, every time.
• Use the correct caging tool (the release stud, washer and nut) — not a substitute bolt.
• Keep your body and face out of the line of the rear cap while you work.
• If a chamber is damaged, rusted through, or the caging tool won't seat properly, don't force it — replace the unit.
• This is a general overview, not a substitute for the manufacturer's procedure and your truck's service manual.

The procedure, in plain steps

• Chock the wheels so the truck can't move once the spring is caged.
• Find the release-bolt port in the rear cap of the spring brake and remove the plug.

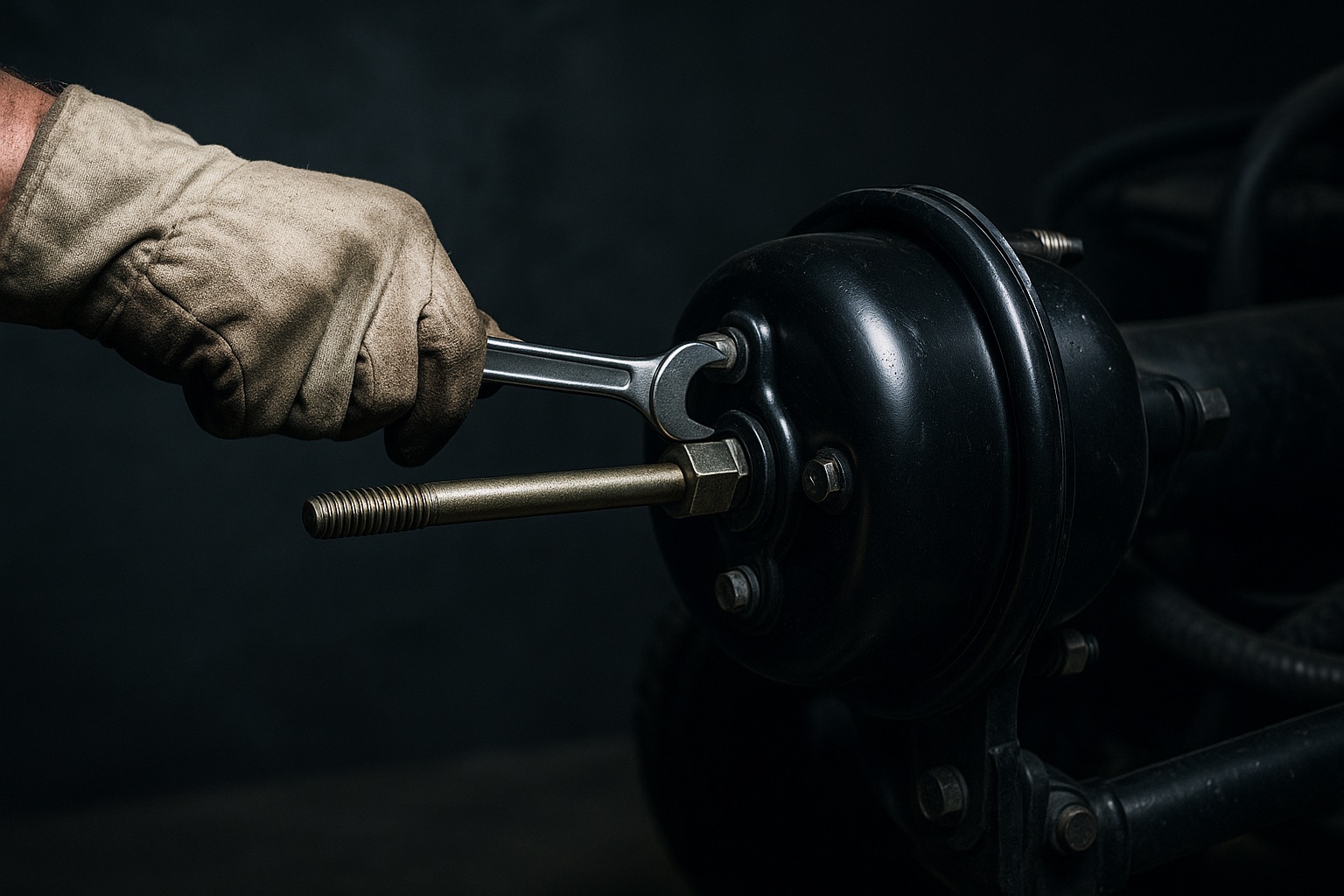

• Insert the caging tool (stud) into the port and seat it into the internal plate — a slight turn locks it in.
• Fit the washer and nut, then turn the nut to draw the stud back, compressing (caging) the spring.
• Turn until the spring is fully caged and the pushrod retracts — follow the tool's torque/turn guidance; don't over-run it.
• The brake is now released mechanically. To reverse, back the nut off evenly to let the spring return, then remove the tool and reinstall the plug.

Caged is a limp-home, not a repair

A caged spring brake has no parking/emergency brake on that wheel — you've disabled the fail-safe to move the truck. Get it somewhere safe and fix the real problem. If you caged it because the chamber failed, the chamber gets replaced as a complete unit; you don't un-cage a bad one and send it back down the road.

When it's time for a new one

Replace a failed spring brake with a fresh complete assembly, matched to the type and stroke on the old can, and do the pair. PartStop stocks premium-quality aftermarket direct-replacement spring chambers cross-referenced to Bendix, Haldex and Meritor, 6+ month warranty, same-day from Tacoma, singles and 2/4/10-packs.
