What You're Getting

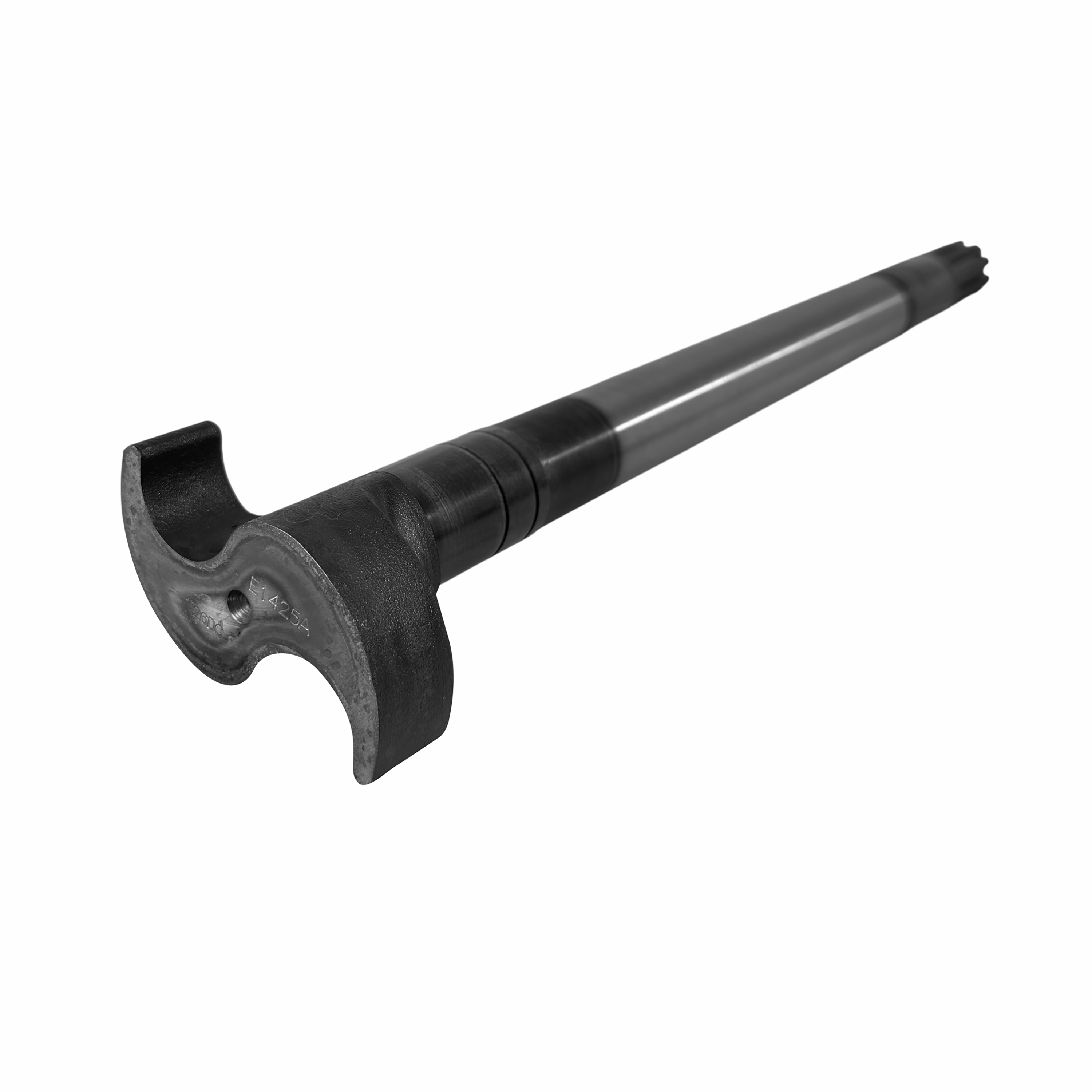

This is a driver-side (LH) S-camshaft built for Meritor Q Plus trailer brakes, 20.44" length, 10 spline on the actuator end. It's the shaft inside the brake chamber assembly that rotates when the pushrod moves, forcing the shoes outward against the drum.
Length and spline count matter here — 20.44" isn't a universal size, and 10 spline vs 12 spline won't interchange. This one's spec'd to bolt into the Q Plus foundation brake setup, not the older Q or newer Q+ variants that sometimes use different cam geometry.
Left-hand matters too. S-cams are handed — put a right-hand cam on the left side and the brake either won't self-adjust right or won't clear the slack adjuster properly. Check which side you're pulling before you order.
How the Cross Numbers Line Up
E1425A cross-references to Torque Parts CS41508, Fortpro 17-471, and Meritor R607082. These aren't different parts wearing different labels — they're the same length, same spline count, same handing, built to the same Q Plus spec. Aftermarket houses like Torque Parts and Fortpro make cams to this print because it's a high-turnover trailer application.
Where guys get burned on S-cam swaps: bushing bore diameter, arm length on the slack adjuster end, and whether the cam is drilled for a specific seal package. Two cams can look identical laying on the counter and still not seat right if the bushing ID is off by a few thousandths.
Bottom line — pull the number off your old camshaft or run the trailer VIN before you buy. If the old part shows E1425A, R607082, CS41508, or 17-471, you're in the right spot. If it's stamped something else, don't guess.
Ordering From PartStop
We're in Tacoma and keep this one in stock — order before early afternoon and it goes out same day for local and regional pickup or ship. Outside the area, it ships nationwide, no drama.
At $10 a shaft, this isn't the part you want to order wrong and eat return shipping on. Comes with our standard 6+ month warranty, so if it's a bad cam out of the box, you're covered.
Buying a full axle set? Order both sides together and match spline count and length on paper before checkout — cheaper to check twice now than to make two trips to the parts counter.
E1425A Cross-Reference & Interchange Numbers
These manufacturer and aftermarket numbers commonly cross-reference to E1425A. Use them to identify the part — then confirm the exact fit by VIN or the number stamped on your old unit before you order. An interchange is a starting point, not a fitment guarantee.
| Brand / Line | Cross-Reference Numbers |
|---|---|
| Torque Parts | CS41508 |
| Fortpro | 17-471 |
| Meritor | R607082 |
Frequently asked questions
Does E1425A fit my trailer?
If your trailer runs Meritor Q Plus brakes with a 20.44" S-camshaft and 10 spline on the left side, it should fit — but confirm by pulling the number stamped on your old camshaft or checking your trailer's axle/brake spec by VIN before ordering. Q Plus, Q, and newer Q+ setups aren't all interchangeable.
Is this the same as Meritor R607082?
Yes — R607082 is Meritor's own number for this same 20.44" LH 10-spline S-cam. Same length, spline, and handing. We stock the aftermarket version, which crosses to that Meritor number and the Torque Parts/Fortpro equivalents listed.
How do I know if I need left or right hand cam?
Stand behind the trailer facing the axle — the side matching the S-cam's rotation direction when the brake applies tells you the hand. Easiest way though is just pull the old cam and check which side it came off, or match the stamped part number against this one.
Not sure it fits? We check before you pay.
Run your VIN and we’ll match parts to your exact truck, or call the counter — a person who knows trucks verifies fitment by OEM number before the order ships. No wrong-box returns.
