How to Measure Brake Chamber Stroke (and Pass Your Next DOT Inspection)

Why stroke is the number that puts trucks out of service

When you press the pedal, air pushes the chamber's diaphragm and the pushrod swings the slack adjuster to clamp the brake. "Stroke" is how far that pushrod travels. As the lining wears and the chamber ages, the rod has to travel farther for the same braking — and past a certain point the brake isn't making full contact anymore. That's "out of adjustment," and it's a leading cause of trucks getting red-tagged at inspection.

The math that scares fleets: an inspector doesn't need one bad brake, they count them. Enough brakes over the limit and the whole rig is placed out of service on the spot. A five-minute measurement in the yard is a lot cheaper than a load sitting on the roadside.

It's worth knowing the scale: the Commercial Vehicle Safety Alliance (CVSA) reports that brake-related issues are consistently the top category of vehicle out-of-service violations in its annual International Roadcheck, and it dedicates a whole Brake Safety Week each year to checking them. Brake adjustment — the exact number you're about to measure — is one of the violations inspectors write most often.

What you need

• A brake stroke gauge or a plain steel ruler marked in inches.
• Chocks, and a helper (or a way to hold a full brake application at ~90–100 psi).
• The adjustment limit for your chamber size — it's set by the chamber type and stroke (long vs short).

How to measure it, step by step

• Chock the wheels and build the air system up to normal operating pressure (around 90–100 psi).

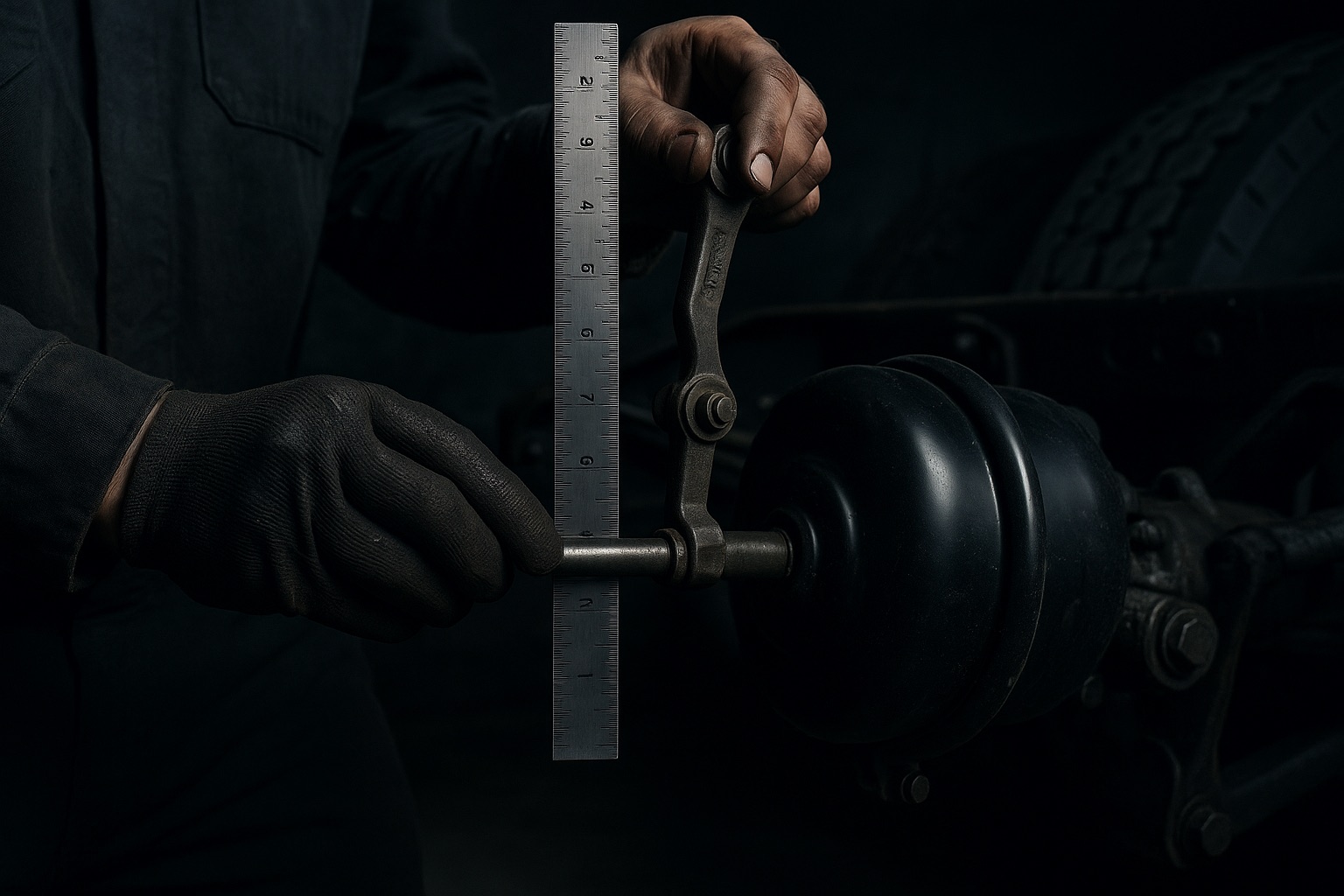

• With the brakes released, measure from the face of the chamber to the center of the clevis pin, or mark the pushrod at the chamber. That's your baseline.
• Have someone make a full brake application and hold it. Measure again to the same point.
• The difference between the two is the applied stroke. Compare it to the adjustment limit for that chamber — Type 30 long stroke and Type 30 short stroke do NOT share the same limit.
• Do every wheel. One out-of-adjustment brake means the others are carrying its share — check them all.

The trap: long stroke vs short stroke limits

This is where people fail the test on paper even when the brake feels fine. Long-stroke and short-stroke chambers of the same type have different adjustment limits. If a past repair put the wrong stroke on the axle, your readings get measured against the wrong limit — and a brake that seems okay reads as a violation. Confirm the chamber stroke stamped on the can matches what the truck is supposed to run before you trust the number.

If it's out of adjustment

An automatic slack adjuster is supposed to keep stroke in spec on its own. If a wheel is over the limit, don't just crank it back and move on — a properly working automatic slack shouldn't need it. Long stroke usually points at a tired chamber diaphragm, a failing slack adjuster, or worn foundation hardware. Find the cause. A chamber that's near the end of its life is a common one, and it's the cheap part in that list.

Keep the right chambers on the shelf

When a measurement points at a spent chamber, you want the replacement in hand — matched to the type and stroke on the old can. PartStop stocks long stroke, short stroke and double-diaphragm chambers as premium-quality aftermarket direct replacements, cross-referenced to Bendix, Haldex and Meritor, 6+ month warranty, same-day shipping from Tacoma. Buy the 2-, 4- or 10-packs so a failed inspection is a shelf swap, not a scramble.
