What You're Actually Buying

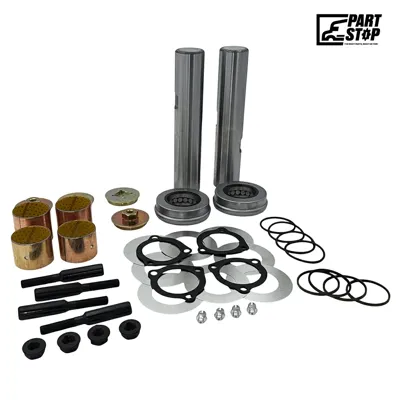

This is a full kingpin kit for the MFS12 front steer axle — pins, bushings, thrust bearings, seals, and the draw keys that lock the pin in the knuckle. MFS12 uses a double draw key setup, not a single taper pin, so don't grab a kit built for MFS13 or MFS14 and expect it to work. Different axle, different pin diameter, different draw key arrangement.
On a Cascadia this axle sits under trucks from 2008 clear through current model years, but Freightliner didn't freeze the spec that whole time. Axle capacity changed, knuckle castings changed a little, and Meritor updated bushing tolerances more than once. The R201615 number is Meritor's kit number for the MFS12 as currently specified — it's not automatically right for every single axle that ever wore an MFS12 tag.
Bottom line: this fixes wander, clunk over bumps, and oval-worn pin bores. It does not fix bad wheel bearings or a bent axle beam — check those while you've got it apart, because you're already in there.
Why These Cross Numbers Match Up
SKB61572 and SKS61572 are the Meritor/TRW kit numbers that get used interchangeably depending on which parts book your supplier pulls from — same physical kit, different catalog origin, both built to the same MFS12 double-draw-key spec. F100000000 shows up under Freightliner's own part numbering for factory-installed axles, and 2519548C91 is the International cross since IHC used the same Meritor axle on some of their trucks too. Meritor's own 82353101T1086 and TDA3101T1086 are the manufacturer service kit numbers this whole thing traces back to.
What actually needs to match: pin diameter and length, bushing bore size, and whether it's the double draw key style versus single taper pin. Get any of those wrong and the kit either won't seat or it'll seat but wear out in 20,000 miles because the bushing clearance is off. Seal size matters too — MFS12 seals aren't interchangeable with the MFS13's larger diameter seal.
The number stamped on your old kingpin or on the axle tag itself is your surest confirmation. Cross-reference charts get you in the ballpark, but the axle tag or the VIN pulled against Freightliner's spec sheet is what actually tells you if R201615 is correct for your specific truck.
Ordering From PartStop
We keep these in stock in Tacoma and most orders go out same day if you call before early afternoon. If you're a local fleet or owner-op and need it same-day pickup, that's usually doable too — just call ahead so we can pull it before you drive over.
We ship nationwide for the guys who aren't in the Pacific Northwest. Kit comes with a 6+ month warranty, which covers manufacturing defects — not wear from running it another 200,000 miles on a bent knuckle, so make sure the knuckle's straight before you button it back up.
If you're not 100% sure this is your axle, call us with the VIN or read us the number off the old kingpin. Takes two minutes and saves you a return shipment on a kit that's already got grease on it.
R201615 Cross-Reference & Interchange Numbers
These manufacturer and aftermarket numbers commonly cross-reference to R201615. Use them to identify the part — then confirm the exact fit by VIN or the number stamped on your old unit before you order. An interchange is a starting point, not a fitment guarantee.
| Brand / Line | Cross-Reference Numbers |
|---|---|
| Cross-Reference | SKB61572, SKS61572, F100000000, 2519548C91 |
| Meritor | 82353101T1086, TDA3101T1086 |
Frequently asked questions
Does R201615 fit my 2015 Cascadia?
Probably, if it's running the MFS12 front axle, but confirm with the VIN or the number stamped on your axle tag before you order. Freightliner ran a few axle variations across those model years and we'd rather check than have you re-machine a knuckle.
Is this the same kit as SKB61572?
Yes, SKB61572 crosses to the same MFS12 double-draw-key kit as R201615 — different catalog number, same parts. Still worth checking your old pin's stamped number against ours before installing.
My steering feels loose but I'm not sure it's the kingpins — how do I know before I order this?
Have someone rock the tire top and bottom while you watch the knuckle-to-axle joint for play — kingpin wear shows up as movement right there. If it's loose there and the pins are original, this kit's usually the fix, but pull the old pin and check the number against R201615 first.
Not sure it fits? We check before you pay.
Run your VIN and we’ll match parts to your exact truck, or call the counter — a person who knows trucks verifies fitment by OEM number before the order ships. No wrong-box returns.
